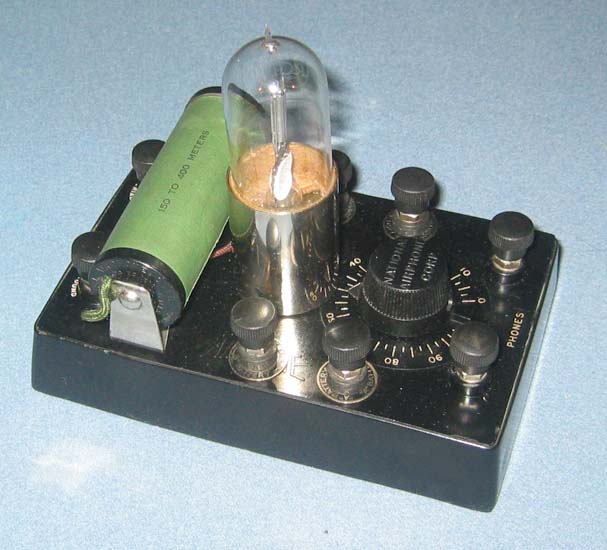

National Monodyne Radio
National Monodyne GT-1 radio.
This one tube radio was made by the National Airphone Company in about 1923. It has a bakelite chassis and uses one WD-12 tube. It came with two coils: the green one receives 150 - 400 meters, and the red one receives 500 - 1000 meters.

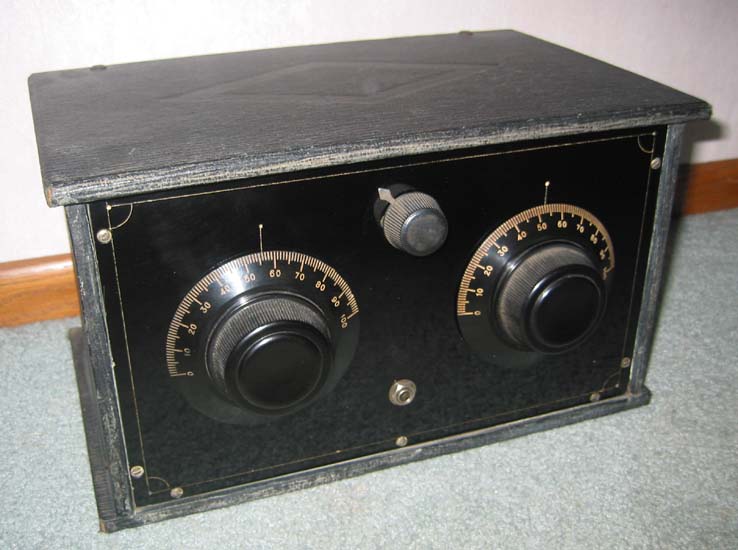

Northland Radio
Northland radio.

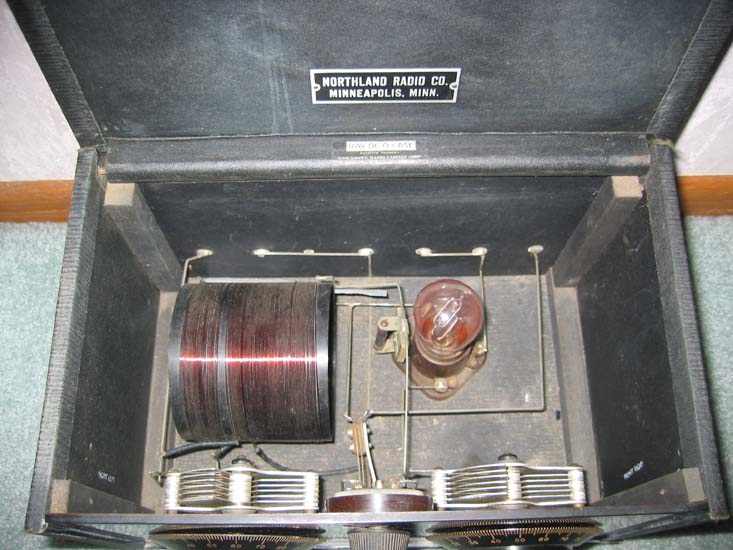

This primitive one tube set may be Northland's first attempt in the radio business. They apparently bought all the components, including the RAY-DE-O-CASE cabinet, assembled them into a radio, and marked the set with a nametag. Northland was located in Minneapolis and manufactured many models during the 1920s and early 1930s.
Northome Model 3 Radio
Northome Model 3 radio.
This 'approximately 1924' battery operated TRF radio uses three Northome brand UX-201A tubes. Two large dials were used for tuning. Northome was a store brand of the M.W. Savage Company of Minneapolis.
Click photo to see inside.
Northome Model VI Radio
Northome Model VI radio.
This 'approximately 1926' battery operated TRF radio uses six UX-201A tubes. Two large dials were used for tuning.
Click photo to see back side.
Northome Model X Radio
Northome Model X radio.
This 'approximately 1926' battery operated TRF radio uses six UX-201A tubes. Two large dials were used for tuning.
Click photo to see back side.
